Numerical: AS 4043

Chemical: AISi5

ALloy composition%: Si 4.5-6.0 Al Balance

Melting range: 573-625℃

Density: 2.68g/cmm³

0.2-permanent elongation limit(N/mm): ≥40

Tensile strength(N/mm): ≥120

Expansion(A5): ≥8%

Certification: DB, TUV, CE


Permitted ingredients%

Si:4.50-5.50Zn:<0.10
Fe:<0.60Be:<0.0003
Cu:<0.30Ti:<0.15
Mn:<0.15Others:<0.05
Mg:<0.20Others total:<0.15

Notice Of Usage And Storage

You can do welding directly in effect without any processing before welding after opening the box of products. The products will be effective more than two years on condition that they are of good packing in seal. The products should be put to the place where is of aeration and dryness and away from the medium of acid, alkali, oil and so on. The products should be avoied of crack and damp during delivery so as to avoid destroying the welding spools and impacting the quality of welding wires. We suggest you to put some dust-proof on the surface of the wires after the packages are removed from the products. We suggest you to do some processing to the surface of the wires before welding when you use the wires out of storage life. The arc welding may hurt your eyes during welding. Please protect your eyes.

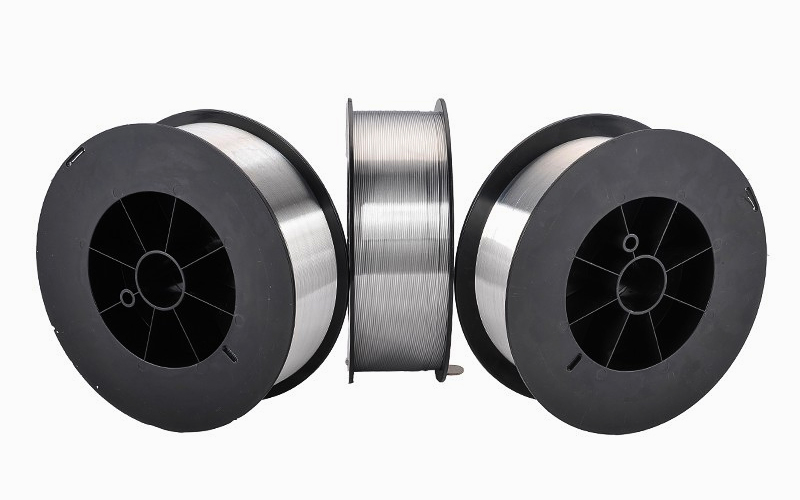

Form and Supply

We support our customers actively in selecting the perfect packaging for each specific area of application in order to ensure an efficient and trouble-free processing of our products. A careful packaging adapted to the product and its transportation enables a safe delivery of our quality products to the customers.
Welding wireNet weightPackaging
AS 2319


Drum welding wire

60-140kg-

Mandrel-mounted

reel D300

DIN EN ISO 544

6.0 kg

7.0 kg

9.0 kg

Each spool welded individually in a plastic bag with silica gel drying salts, and packed in a carton.

Basket spool

BS300

DIN EN ISO 544

7.0 kg

7.5 kg

Each spool welded individually in a plastic bag with silica gel drying salts, and packed in a carton.

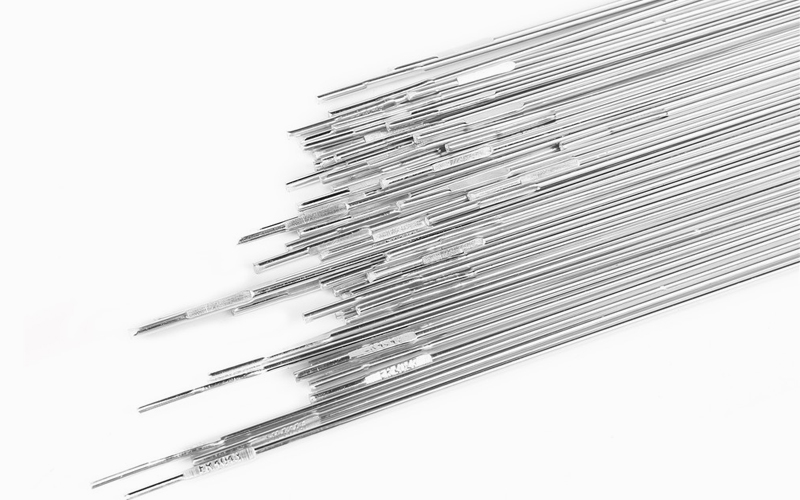

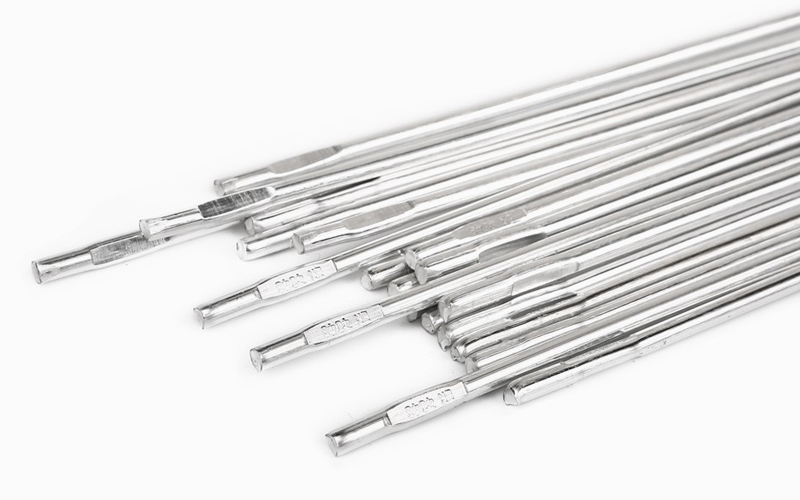

Welding rods

AOSEN welding rods are 1000 mm long in the normal

version and have a material designation

impressed on one side.

*Packaging unit:
10.0KG/ 5.0 KG/2.5 KGa.png

Aluminium Wire/

Spool table









Nominal wire
Spool type
0.600.801.01.21.62.4*Gross weight in kg
D10065836823616092-0.5
D200-1473944660368-2
D300-44202832197011054926
BS300-55273540246013816157.5
