ALloy composition%: Mg 4.5-5.5 Mn 0.05-0.20 Cr 0.05-0.20 Ti 0.06-0.20 Al Balance
Melting range: 575-633℃
Density: 2.64g/cmm³
0.2-permanent elongation limit(N/mm): ≥120
Tensile strength(N/mm): ≥250
Expansion(A5): ≥18%
Certification: DB, TUV, CE, ABS
Permitted ingredients%
Si: | <0.25 | Cr: | 0.05-0.20 |
Fe: | <0.40 | Zn: | <0.10 |
Cu: | <0.10 | Be: | <0.0003 |
Mn: | 0.05-0.20 | Ti: | 0.06-0.20 |
Mg: | 4.50-5.5. | Others: | <0.05 |
Notice Of Usage And Storage
You can do welding directly in effect without any processing before welding after opening the box of products. The products will be effective more than two years on condition that they are of good packing in seal. The products should be put to the place where is of aeration and dryness and away from the medium of acid, alkali, oil and so on. The products should be avoied of crack and damp during delivery so as to avoid destroying the welding spools and impacting the quality of welding wires. We suggest you to put some dust-proof on the surface of the wires after the packages are removed from the products. We suggest you to do some processing to the surface of the wires before welding when you use the wires out of storage life. The arc welding may hurt your eyes during welding. Please protect your eyes.
Form and Supply
We support our customers actively in selecting the perfect packaging for each specific area of application in order to ensure an efficient and trouble-free processing of our products. A careful packaging adapted to the product and its transportation enables a safe delivery of our quality products to the customers.

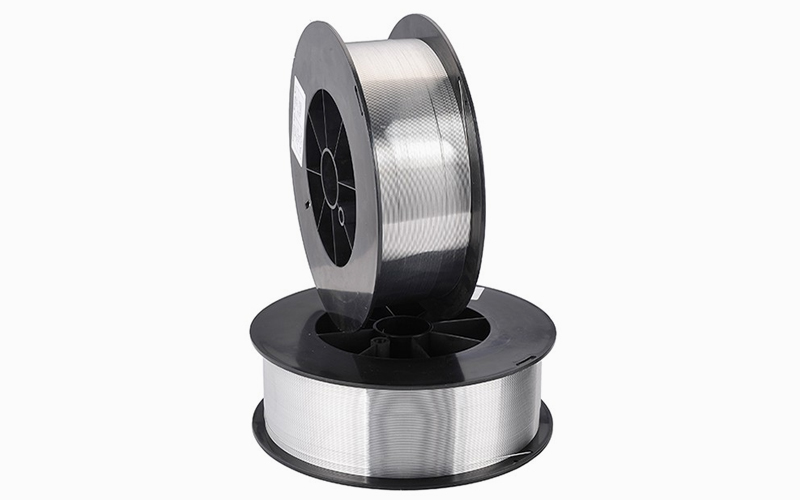

Welding wire | Net weight | Packaging |
Drum welding wire | 60-140kg | - |
Mandrel-mounted reel D300 DIN EN ISO 544 | 6.0 kg 7.0 kg 9.0 kg | Each spool welded individually in a plastic bag with silica gel drying salts, and packed in a carton. |
Basket spool BS300 DIN EN ISO 544 | 7.0 kg 7.5 kg | Each spool welded individually in a plastic bag with silica gel drying salts, and packed in a carton. |

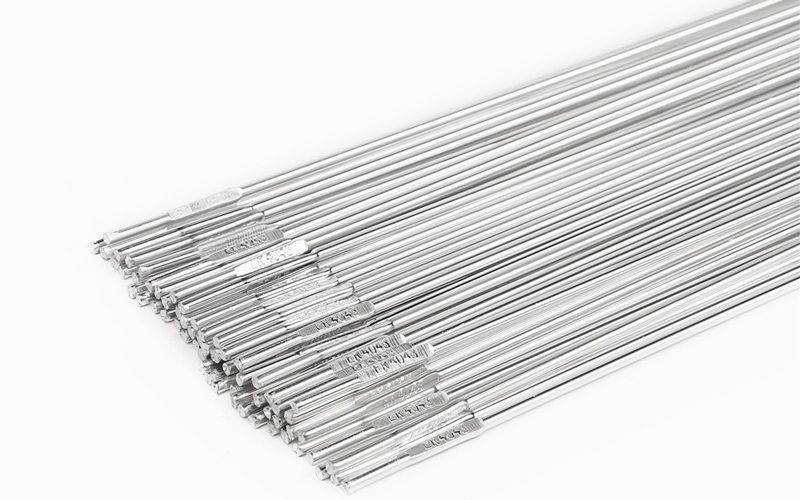

Welding rods
AOSEN welding rods are 1000 mm long in the normal
version and have a material designation
impressed on one side.
*Packaging unit:
10.0KG/ 5.0 KG/2.5 KG
![a.png](/uploads/ueditor/image/20240522/1716356741214108.png)
Aluminium Wire/ Spool table |
|
|
|
|
|
|
|
|
Nominal wire Spool type | 0.60 | 0.80 | 1.0 | 1.2 | 1.6 | 2.4 | *Gross weight in kg |
D100 | 658 | 368 | 236 | 160 | 92 | - | 0.5 |
D200 | - | 1473 | 944 | 660 | 368 | - | 2 |
D300 | - | 4420 | 2832 | 1970 | 1105 | 492 | 6 |
BS300 | - | 5527 | 3540 | 2460 | 1381 | 615 | 7.5 |
